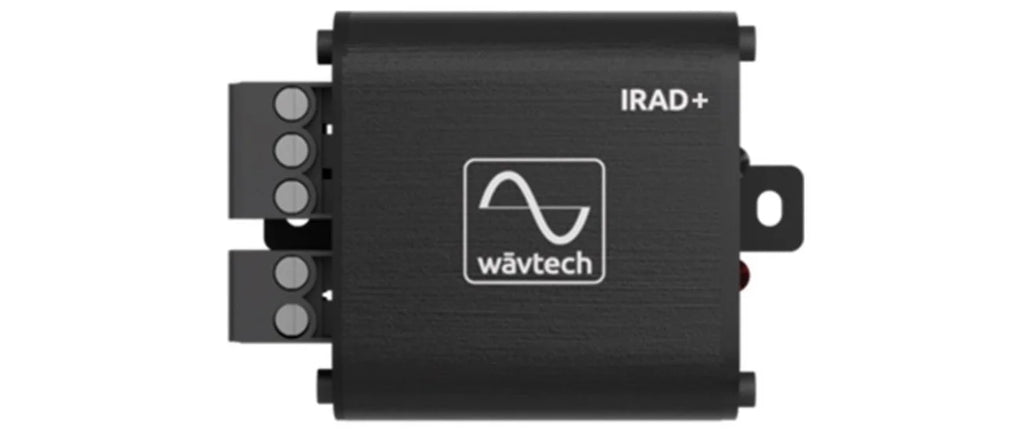

IRAD+

Ignition/ Remote Generator + Delay

The technology in the Patented IRAD+ make it the ultimate installation tool.  It provides solutions to 3 very specific problems faced in today’s installations. This easy to program device allows you to add a switched 12-volt output, a remote output with adjustable delay and a relay/solenoid control to overcome the issues created by vehicles with start/stop systems.

IRAD+ Features

• Automatic 12V Ignition Generator with Dual Outputs

• Switched Trigger Isolator/Generator with Dual Outputs

• Start/Stop System Solution with Automatic Relay/Solenoid Control

• Independent Adjustable Turn-On/Off Delays, up to 10sec or 10min

• Reversible Turn-Off Order for Ultimate Pop-Noise Mitigation

• Accessory Hold/Override over Ignition Detect for Continuous Operation

• Unlink Mode for Independent Remote and Ignition Outputs

• 3A Continuous Current per Output or 6A in Parallel to Single Load

• Locking Detachable Terminals

• Compact Aluminum Chassis w/Detachable Mounting Tabs

• Chassis Dimensions: 0.79”x1.5”x1.5” (20x38x37mm)
